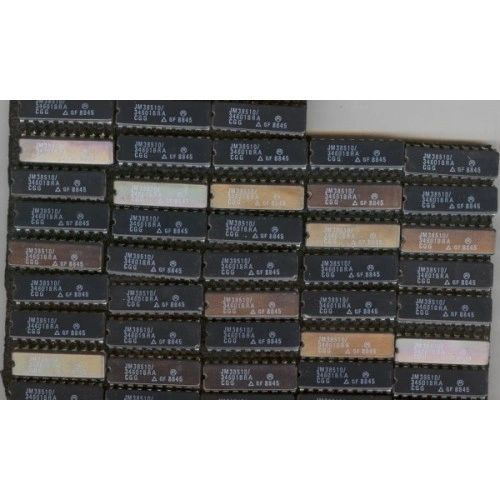

Part: JM38510/34601BRA

Category:
Logic
-> Latches
-> D-Type (3-State) Latches

Description: ti SN54F373, Octal Transparent D-type Latches With 3-State Outputs

Company: Texas Instruments, Inc.


Datasheet text preview:
SN54F373, SN74F373 OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
SDFS076A ? D2932, MARCH 1987 ? REVISED OCTOBER 1993

? ? ? ? ?

Eight Latches in a Single Package 3-State Bus-Driving True Outputs Full Parallel Access for Loading Buffered Control Inputs Package Options Include Plastic Small-Outline (SOIC) and Shrink Small-Outline (SSOP) Packages, Ceramic Chip Carriers, and Plastic and Ceramic DIPs

SN54F373 . . . J PACKAGE SN74F373 . . . DB, DW, OR N PACKAGE (TOP VIEW)

description
These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The eight latches of the F373 are transparent D-type latches. While the latch-enable (LE) input is high, the Q outputs will follow the data (D) inputs. When the latch enable is taken low, the Q outputs are latched at the logic levels set up at the D inputs. A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

ti SN54F373, Octal Transparent D-type Latches With 3-State Outputs

NEW SURPLUS

THIS SALE IS FOR 1 EACH IC

...

NOTE:

ALL ELECTRONICS ARE UNTESTED

SOLD AS IS
