MOTOROLA & Texas Instrument
IC , IC'S
INTEGRATED CIRCUIT

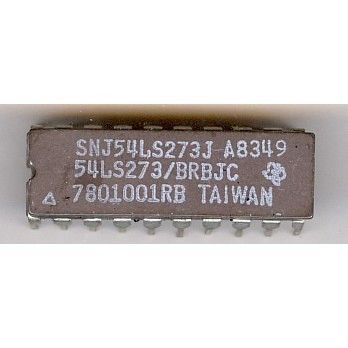

SNJ54LS273J
54LS273/BRBJC
Octal D-type Flip-Flop With Clear
| Voltage Nodes(V) | 5 | 5 |
| Vcc range(V) | 4.5 to 5.5 | 4.75 to 5.25 |
| Input Level | TTL | TTL |
| Output Level | TTL | TTL |
| Output Drive(mA) | |
-0.4/8 |
| Output | 2S | 2S |
| No. of Bits | 8 | 8 |
| Static Current | |
27 |
| th(ns) | |
5 |
| tpd max(ns) | |
27 |
| tsu(ns) | |
20 |
| Technology Family | LS | LS |
MILITARY QUALITY
SURPLUS
