TRANSISTOR 2N5405 ELECTRONIC PARTS AVIONCS

$8.00 $4.00
Free Shipping!

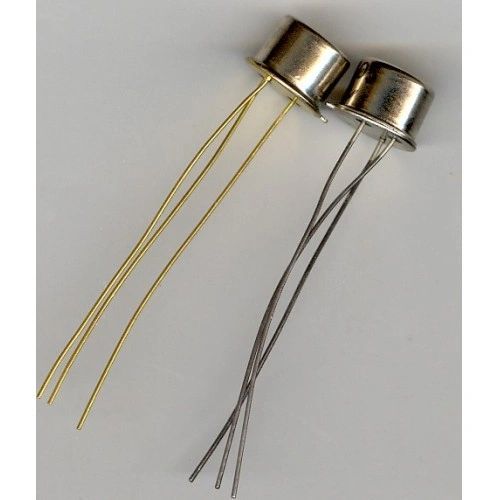

TRANSISTOR

2N5405

Category:
Discrete
-> Transistors
-> Bipolar

Description: Screening Options Available = ;; Polarity = PNP ;; Package = TO39 (TO205AD) ;; Vceo = 100V ;; IC(cont) = 5A ;; HFE(min) = 20 ;; HFE(max) = 60 ;; @ Vce/ic = 5V / 2A ;; FT = 40MHz ;; PD = 1W

Company: Semelab Plc


Datasheet text preview:
2N5404 2N5405 2N5406 2N5407
MECHANICAL DATA Dimensions in mm
8.89 (0.35) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335)

SMALL SIGNAL PNP TRANSISTORS IN TO-5

4.19 (0.165) 4.95 (0.195)

12.70 (0.500) min.

0.89 m ax . (0.035) 0.41 (0.016) 0.53 (0.021) d i a.

APPLICATIONS
Small signal PNP transistors for relay switching resistor logic circuits and general purpose applications.
2.54 (0.100)

5.08 (0.200) typ.

2 1
0.66 (0.026) 1.14 (0.045)

3

0.71 (0.028) 0.86 (0.034)

45?

TO-5
Pin1 - Emitter Pin2 - Base Pin3 - Collector

ABSOLUTE MAXIMUM RATINGS (Tcase = 25?C unless otherwise stated)
2N5404 BVCBO BVCEO BVEBO IC(Max) IB(Max) PTOT TSTG , TJ Collector ? Base Breakdown Voltage Collector ? Emitter Breakdown Voltage Emitter ? Base Breakdown Voltage Collector Current Base Current Total Power Dissipation (100?C Case) Operating and Storage Temperature Range
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to verify that datasheets are current before placing orders.

2N5405 ? 100V ? 100V ?6V -5A ? 2A 5W

2N5406 ? 80V ? 80V ? 6V ? 5A ? 2A 5W

2N5407 ? 100V ? 100V ?6V -5A ? 2A 5W

? 80V ? 80V ? 6V ? 5A ? 2A 5W

? 65?C to +200?C

Semelab plc.

Telephone +44(0)1455 556565. Fax +44(0)1455 552612. E-mail: sales@semelab.co.uk Website:

Document Number 3075 Issue 1

2N5404 2N5405 2N5406 2N5407
ELECTRICAL CHARACTERISTICS (Tcase = 25?C unless otherwise stated)
Parameter
ICEX Collector Cut-Off Current

Test Conditions
VCE =BVCEO VCE =BVCEO TC = 150?C VBE = 1.5V VBE = 1.5V 2N5404 2N5406 2N5405 2N5407

Min.

Typ. Max. Unit
? 10 ? 500 ?A

VCEO(SUS)

Collector-Emitter Sustaining Voltage With Base Open Collector Cut-Off Current

IC = ?100mA IB = 0 IC = ?100mA IB = 0 VCE = ? 50V VEB = ? 4V IC = 0 IC = 0 VCE = ? 5V VCE = ? 5V IB = ? 0.2A IB = ? 0.2A f = 1MHz IC = ? 0.2A

?80 V ?100 ?100 ?1 ?A ?A

ICEO IEBO

Common Emitter, Small-Signal Value hFE of the Short-Circuit Forward Current Transfer Ratio (f = 1KHz) VCE(SAT) Collector-Emitter Saturation Voltage VBE
(SAT)

IC = ? 2A IC = ? 2A IC = ? 2A IC = ? 2A VCB = ? 10V VCE = ? 5V IC = ? 2A

2N5404 2N5405 2N5406 2N5407

20 40

60 ? 120 ?0.6 ?1.2 150 V V pf MHz 0.5 ?

Base-Emitter Saturation Voltage Collector Base Capacitance Transistion Frequency Rise Time

DYNAMIC CHARACTERISTICS
COBO ft tr 40

IB1 = ? IB2 = 0.2A IC = ? 2A 2N5404 2N5405 2N5406 2N5407 2N5404 2N5405 2N5406 2N5407 IB1 = ? IB2 = 0.2A IC = ? 2A IB1 = ? IB2 = 2A IC = ?2A IB1 = ? IB2 = 2A

0.75 ? 1 0.2 ? 0.3

ts

Storage time

tf

Fall Time

IC = ?2A IB1 = ? IB2 = 2A

* Pulse test : Pulse Width

THIS SALE IS FOR 1 EACH

NEW SURPLUS

NOTE:

ALL ELECTRONICS ARE UNTESTED

SOLD AS IS
