MS20364-428
AIRCRAFT SELF LOCKING NUTS

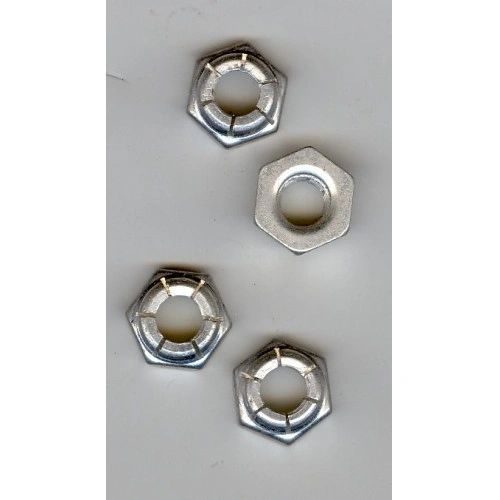

NUT, SELF-LOCKING, HEXAGON
5310-00-595-7475]
BZRR THREAD SERIES UNF CQJX NOMINAL THREAD SIZE 0.250 INCHES CMLP THREAD QUANTITY PER INCH 28 AAJD THREAD CLASS 3B AAJF THREAD DIRECTION RIGHT-HAND MATT MATERIAL STEEL OVERALL SFTT SURFACE TREATMENT CADMIUM OVERALL CQFM HARDNESS RATING NOT RATED ACTA NUT STYLE A12 HEXAGON ADEA NUT HEIGHT 0.203 INCHES NOMINAL ASDB WIDTH ACROSS FLATS 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM CRTM BEARING SURFACE TYPE CHAMFERED OR WASHER FACED AAUM LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN OR PREVAILING TORQUE WITH NONMETALLIC INSERT AZKQ TEMP RATING 250.0 DEG FAHRENHEIT NOMINAL SR-1 MANUFACTURERS CODE 88044 SR-1 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN364-428 SR-1 MANUFACTURERS CODE 81349 SR-1 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MILN25027
GOOD FOR AIRCRAFT
MARINE
RACING
HOT RODS
THIS SALE IS FOR 81 EACH NUTS
