GRAYHILL ROTARY SW P/N 53M15-07-1-24S-F

$40.00 $32.00
Free Shipping!
There is only 1 item left in stock.

GRAYHILL

ROTARY SW

P/N 53M15-07-1-24S-F

NUMBERS ON THE BOTTOM GO FROM

1 -24

MILITARY QUALIFIED MIL-S-3786/36

GOLD-PLATED CONTACT SYSTEM

COMPATIBLE WITH LOGIC CIRCUITY

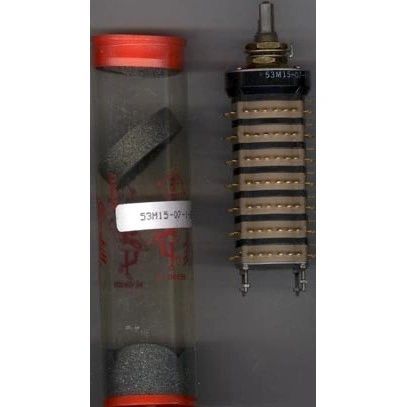

Rotary Switch, Military, 15?, 7 deck, 1 pole/deck, 24 positions/pole, shorting, fixed stop, 53M15-07B24S

MILITARY QUALIFIED

The Series 53, 57 and 59 rotary switches are all

military type switches. Grayhill manufactures

these switches in two styles: M and HS. Style M

is unsealed and is not qualified; Style HS is shaft

and panel sealed and is qualified. The nonqualified

Style M can be regarded as our

Standard Style for types of switches. Although

it is not qualified, Style M is constructed of the

same military grade materials and will provide

comparable performance in all areas. For

example, the Style ?M? switches, in addition to

the electrical ratings listed elsewhere in these

pages, will meet the following requirements of

MIL-S-3786:

Moisture Resistance: Medium and High Shock;

Vibration (10 to 500 cps); Thermal Shock (-65

?C to 125 ?C); Salt Spray; Explosion; Terminal

Strength (pull, 2 lbs. minimum); and Stop

Strength (15 pound-inches minimum).

The only difference

between the two is the length of the tab of the

non-turn washer. The shorter tab for the HS is

explained in the following paragraph.

The Series 53, 57 and 59 Style HS rotary

switches are qualified to MIL-S3786/36.

Standard variations, such as shaft and/or

bushing length, etc., that do not affect switch

performance can also be marked as qualified

product. For complete details contact Grayhill.

Military qualified Series 53, 57 and 59 Style HS

Style HS Switches are MIL-S-3786/36

FEATURES

? Smallest Diameter Rotary Switch

with this Number of Positions and

Current Capacity

? Military Qualified MIL-S-3786/36

? Gold-plated Contact System

Compatible with Logic Circuitry

SURPLUS

NOTE:

ALL ELECTRONICS ARE UNTESTED

SOLD AS IS
