TEXAS INSTRUMENT

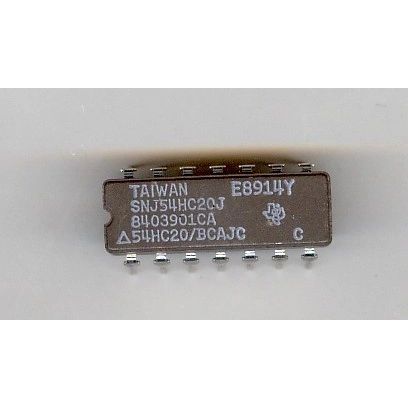

INTEGRATED CIRCUITSNJ54HC20J
54HC20/BCAJC
DUAL 4-INPUT POSITIVE-NAND GATES
Wide Operating Voltage Range of 2 V to 6 V
Low Power Consumption, 20-μA Max ICC
Typical tpd = 11 ns
?4-mA Output Drive at 5 V
Low Input Current of 1 μA Max
Integrated circuit
ic ic's
MIL-SPEC
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
