TEXAS INSTRUMENT
IC

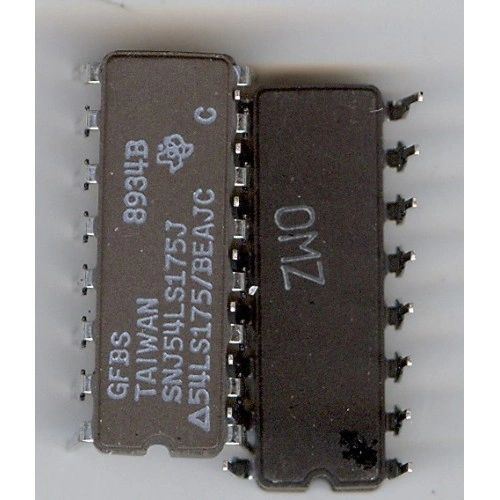

SNJ54LS175J
INTEGRATED CIRCUIT
Hex/Quadruple D-Type Flip-Flops With Clear (Rev. A)
Voltage Nodes(V) 5 5 Vcc range(V) 4.5 to 5.5 4.75 to 5.25 Input Level TTL TTL Output Level TTL TTL Output Drive(mA) -0.4/8 Output 2S 2S No. of Bits 4 4 Static Current 18 th(ns) 5 tpd max(ns) 25 tsu(ns) 20THIS SALE IS FOR 1 EACH IC
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
