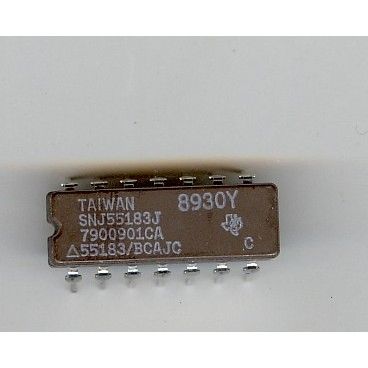

INTEGRATED CIRCUIT IC SNJ55183J TEXAS INSTRUMENT

$9.00 $5.50
Free Shipping!

Texas Instrument

Integrated circuit

IC

SNJ55183J

DUAL DIFFERENTIAL LINE DRIVER

Single 5-V Supply

Differential Line Operation

Dual Channels

TTL Compatibility

Short-Circuit Protection of Outputs

Output Clamp Diodes to Terminate Line

Transients

High-Current Outputs

Quad Inputs

Single-Ended or Differential AND/NAND

Outputs

Designed for Use With Dual Differential

Drivers SN55182 and SN75182

Designed to Be Interchangeable With

National Semiconductor DS7830 and

DS8830

description

The DS8830, SN55183, and SN75183 dual

differential line drivers are designed to provide

differential output signals with high current

capability for driving balanced lines, such as

twisted pair, at normal line impedances without

high power dissipation. These devices can be

used as TTL expander/phase splitters, because

the output stages are similar to TTL totem-pole

outputs.

The driver is of monolithic single-chip construction, and both halves of the dual circuits use common power

supply and ground terminals.

The SN55183 is characterized for operation over the full military temperature range of ?55?C to 125?C. The

DS8830 and SN75183 are characterized for operation from 0?C to 70?C.


SURPLUS

NOTE:

ALL ELECTRONICS ARE UNTESTED

SOLD AS IS
