MMI
IC
INTEGRATED CIRCUIT

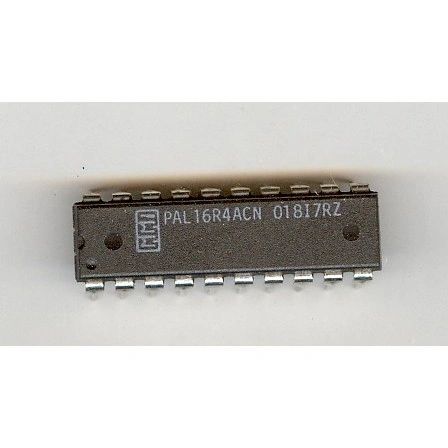

PAL16R4ACN
Fuse-Programmable Array Logic Device (FPAL)
neric Number :
Military/High-Rel : N
Tech. : TTL
Number of Inputs : 16
Prod. Terms Max. : 8
No. of Outputs : 8
t(PLH) Maximum (S) : 25n
Output Config : 3-State
Logic Modes : CombnSeqnt
Nom. Supp (V) : 5
Minimum Operating Temp (шC) : 0
Maximum Operating Temp (шC) : 75
Package Style : DIP
Mounting Style : T
# Pins : 20
MIL-SPEC
UNUSED SURPLUS
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
