MOTOROLA
IC
INTEGRATED CIRCUIT

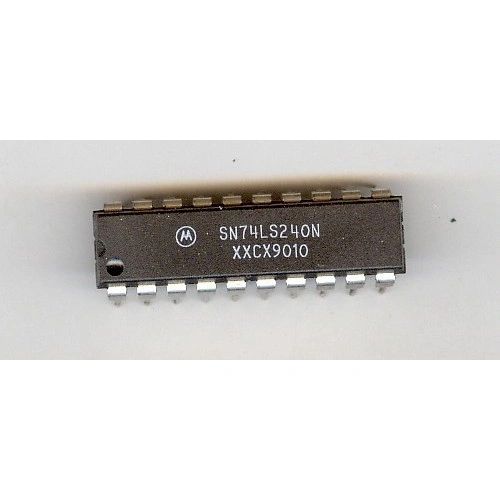

SN74LS240N
OCTAL BUFFER/LINE DRIVER WITH 3-STATE OUTPUTS
Military/High-Rel : N
Tech. : TTL
Circuits Per Package : 8
Inputs per Circuit :
Output Config : 3-State
t(PLH) Maximum (S) : 18n
VOL Max. : 0.5
@Iol (A) : 24m
Nom. Supp (V) : 5.0
Minimum Operating Temp (шC) : 0
Maximum Operating Temp (шC) : 70
Package Style : DIP
Mounting Style : T
# Pins : 20
MIL-SPEC
UNUSED SURPLUS
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
