TEXAS INSTRUMENT
IC
INTEGRATED CIRCUIT

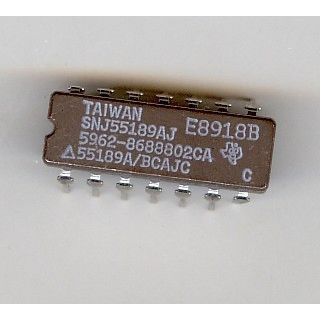

SNJ55189AJ
5962-8688802CA
55189A/BCAJC
QUADRUPLE LINE RECEIVER
Input Resistance . . . 3 kW to 7 kW
Operate From Single 5-V Supply
Built-In Input Hysteresis (Double
Thresholds)
Response Control that Provides:
Input Threshold Shifting
Input Noise Filtering
Meet or Exceed the Requirements of
TIA/EIA-232-F and ITU Recommendation
V.28
Fully Interchangeable With Motorola
These devices are monolithic low-power Schottky
quadruple line receivers designed to satisfy the
requirements of the standard interface between
data-terminal equipment and data-communication
equipment as defined by TIA/EIA-232-F. A
separate response-control (CONT) terminal is
provided for each receiver. A resistor or a resistor
and bias-voltage source can be connected
between this terminal and ground to shift the input
threshold levels. An external capacitor can be
connected between this terminal and ground to
provide input noise filtering.
MIL-SPEC
UNUSED SURPLUS
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
