TEXAS INSTRUMENT
INTEGRATED CIRCUIT
IC

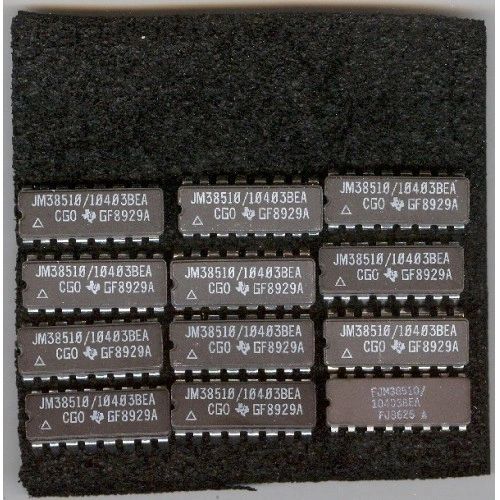

JM38510/10403BEA
Dual Differential
Line Driver
M38510/10403BEA
Features
- Choice of Open-Collector,
Open-Emitter, or Totem-Pole Outputs
- Single-Ended or Differential
AND/NAND Outputs
- Single 5-V Supply
- Dual-Channel Operation
- TTL Compatible
- Short-Circuit Protection
- High-Current Outputs
- Triple inputs
- Clamp Diodes at Inputs and
Outputs
- Designed for Use With SN55115
and SN75115 Differential Line Receivers
- Designed to Be Interchangeable
With National DS9614 Line Drive
THIS SALE IS FOR 1
EACH IC
NOTE:
ALL ELECTRONICS
ARE UNTESTED
SOLD AS IS
