INTEGRATED CIRCUIT MC54F04J ELECTRONICS MOTOROLA

$11.00 $8.00
Free Shipping!

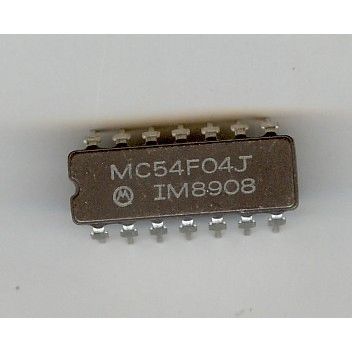

MC54F04J

IC

INTEGRATED CIRCUIT

Description: Hex Inverter Fast Schottky TTL

Company: Motorola Semiconductor Products

Datasheet text preview:
MC54/74F04 HEX INVERTER
HEX INVERTER
FASTTM SCHOTTKY TTL
VCC 14 13 12 11 10 9 8
J SUFFIX CERAMIC CASE 632-08 1 2 3 4 5 6 7 GND
14 1
N SUFFIX PLASTIC CASE 646-06
14 1
14
D SUFFIX SOIC CASE 751A-02
1


Symbol VCC TA Supply Voltage Operating Ambient Temperature Range Parameter 54, 74 54 74 IOH IOL Output Current -- High Output Current -- Low 54, 74 54, 74 Min 4.5 ?55 0 Typ 5.0 25 25 Max 5.5 125 70 ?1.0 20 mA mA Unit V ?C
FAST AND LS TTL DATA 4-6
MC54/74F04
DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE (unless otherwise specified)
Limits Symbol VIH VIL VIK VOH Parameter Input HIGH Voltage Input LOW Voltage Input Clamp Diode Voltage Output HIGH Voltage 54, 74 74 VOL IIH Output LOW Voltage Input HIGH Current 2.5 2.7 0.5 20 0.1 IIL IOS ICC Input LOW Current Output Short Circuit Current (Note 2) Power Supply Current Total, Output HIGH Total, Output LOW ?60 ?0.6 ?150 4.2 15.3 Min 2.0 0.8 ?1.2 Typ Max Unit V V V V V V ?A mA mA mA mA mA Test Conditions Guaranteed Input HIGH Voltage Guaranteed Input LOW Voltage VCC = MIN, IIN = ?18 mA IOH = ?1.0 mA IOH = ?1.0 mA IOL = 20 mA VCC = 4.50 V VCC = 4.75 V VCC = MIN
VCC = MAX, VIN = 2.7 V VCC = MAX, VIN = 7.0 V VCC = MAX, VIN = 0.5 V VCC = MAX, VOUT = 0 V VCC = MAX, VIN = GND VCC = MAX, VIN = Open

AC CHARACTERISTICS
54/74F TA = +25?C VCC = +5.0 V CL = 50 pF Symbol tPLH tPHL Parameter Propagation Delay Propagation Delay Min 2.4 1.5 Max 5.0 4.3 54F TA = ?55?C to +125?C VCC = 5.0 V ? 10% CL = 50 pF Min 2.0 1.5 Max 7.0 6.5 74F TA = 0?C to 70?C VCC = 5.0 V ? 10% CL = 50 pF Min 2.4 1.5 MAX 6.0 5.3 Unit ns ns
FAST AND LS TTL DATA 4-7


NOTE:

ALL ELECTRONICS ARE UNTESTED

SOLD AS IS
