VOLTAGE REGULATOR
MOTOROLA

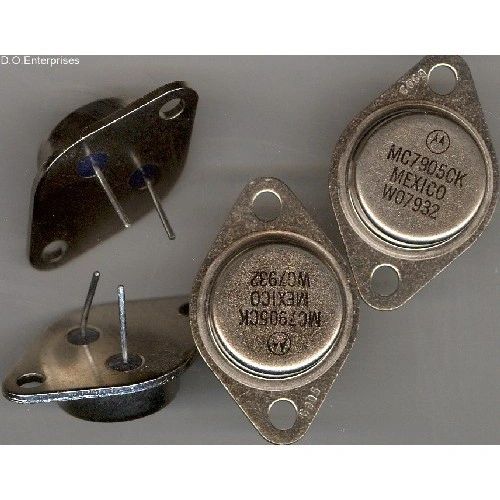

P/N MC7905CK
MIL SPEC
AN
NEW SURPLUS
CROSS REFERENCE
NTE1913Low ground pin current allows output voltage to be easily boosted above the preset value with a resistor divider. The low quiescent current drain of the NTE1913 with a specified maximum change with line and load ensures good regulation in the voltage boosted mode.
Features:Note 1. Thermal resistance, junction-to-ambient is +50?C/W (no heat sink) and +5?C/W (infinite heat sink).
Electrical Characteristics: (0? J D OUT = -5V, VIN = -10V, IO = 500mA, CIN = 2.2?F, COUT = 1?F, unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Units Output Voltage VO TJ = +25?C -4.8 -5.0 -5.2 V 5mA O IN -4.75 -5.00 -5.25 V Line Regulation Regline TJ = +25?C, -25V IN - 8 50 mV TJ = +25?C, -12V IN - 2 15 mV Load Regulation Regload TJ = +25?C, 5mA O - 15 100 mV TJ = +25?C, 250mA O - 5 50 mV Quiescent Current IQ TJ = +25?C - 1 2 mA Quiescent Current Change IQ With line, -25V IN - - 0.5 mA With load, 5mA O - - 0.5 mA Output Noise Voltage Vn TA = +25?C, f = 10Hz to 100Hz - 125 - ?V Ripple Rejection RR -18V IN 54 66 - dB Dropout Voltage TJ = +25?C, IO = 1A - 1.1 - V Peak Output Current IOmax TJ = +25?C - 2.2 - A Average Temperature Coefficient of Output Voltage 0?C J O = 5mA - 0.4 - mV/?CNote 2. Regulation is measured at a constant temperature by pulse testing with a low duty cycle. Changes in output voltage due to heating effects must be taken into account.
THIS SALE IS FOR 1 EACH
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
