SILICONE CONTROLLED RECTIFIER

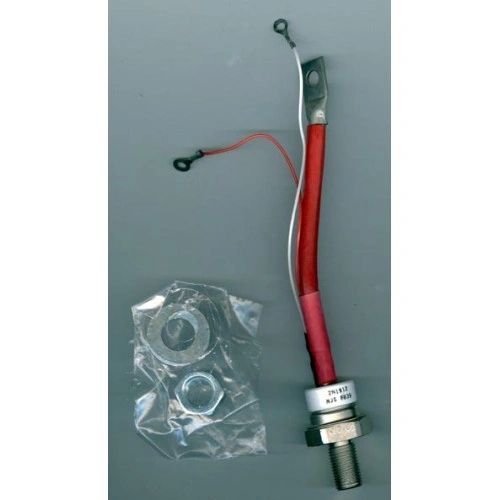

Part: 2N1912
Description: Style = Phase Control ;; Type = Stud SCR ;; Voltage =
150V ;; Current = 70A ;; Circuit Configuration = SingleV(DRM) Max. (V)
150
I(T) Rated Maximum (A) 70?
@Temp. (?C) (Test Condition) 62#
I(TSM) Max. (A) 1.0k?
@ t(w) (s) (Test Condition)
I(GT) Max. (A) 130m
V(GT) Max.(V) 3.0
I(H) Max. (A) Holding Current
I(D) Max. (A) Leakage Current 6.5m?
@Temp. (?C) (Test Condition) 62#
V(T) Max. (V) 1.8
@I(T) (A) (Test Condition) 219
dv/dt Min. (V/us)
t(q) Typ. (s)
Minimum Operating Temp (?C) -40
Maximum Operating Temp (?C) 125#
Thermal Resistance Junc-Case
Package Style TO-209AA
Mounting Style T
Pinout Equivalence Code 3-23
NJS 8839
MADE BY
MICROSEMI
NEVER USED
..
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
