Part:

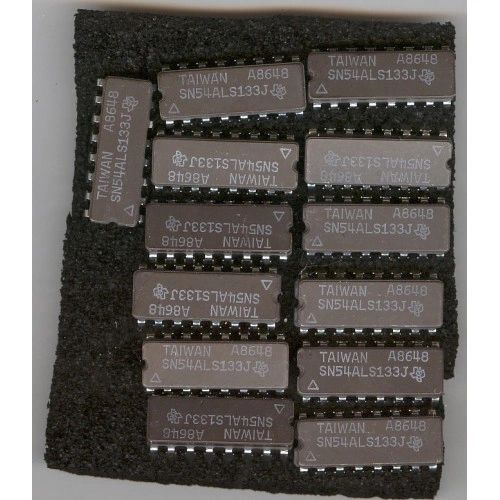

SN54ALS133J
Category:
Logic
-> Gates
-> NAND Gates
Description: ti SN54ALS133, 13-Input Positive-nand Gates
Company: Texas Instruments, Inc.
Datasheet text preview:
SN54ALS133, SN74ALS133 13-INPUT POSITIVE-NAND GATES
SDAS202B APRIL 1982 REVISED DECEMBER 1994
?
Package Options Include Plastic Small-Outline (D) Packages, Ceramic
Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil
DIPs
SN54ALS133 . . . J PACKAGE SN74ALS133 . . . D OR N PACKAGE (TOP VIEW)
description
These devices contain a 13-input positive-NAND gate. They perform the
following Boolean functions in positive logic: Y = A?B?C?D?E?F?G?H?I?J?K?L?M
Y = A+B+C+D+E+F+G+H+I+J+K+L+M The SN54ALS133 is characterized for
operation over the full military temperature range of 55?C to 125?C.
The SN74ALS133 is characterized for operation from 0?C to 70?C.
FUNCTION TABLE INPUTS A M All inputs H One or more inputs L OUTPUT Y L
H
