TRANSISTOR
Part: 2N3012
Category:
Discrete
-> Transistors
-> Bipolar
Description: Screening Options Available = ;; Polarity = PNP ;; Package = TO18 (TO206AA) ;; Vceo = 12V ;; IC(cont) = 0.2A ;; HFE(min) = 30 ;; HFE(max) = 120 ;; @ Vce/ic = 0.5V / 30mA ;; FT = 400MHz ;; PD = 0.36W
Company: Semelab Plc
Datasheet text preview:
2N3012
Dimensions in mm (inches).
5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178)

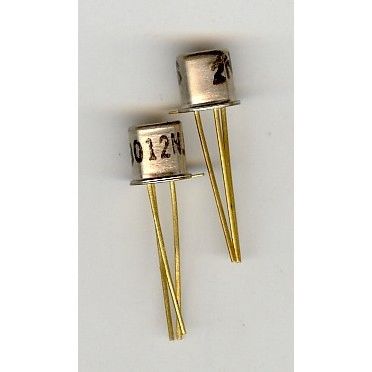

Bipolar PNP Device in a Hermetically sealed TO18 Metal Package.
Bipolar PNP Device. VCEO = 12V
0.48 (0.019) 0.41 (0.016) dia.
IC = 0.2A
All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications
3 2 1
2.54 (0.100) Nom.
TO18 (TO206AA) PINOUTS
1 ? Emitter 2 ? Base 3 ? Collector
Parameter VCEO* IC(CONT) hFE ft PD
Test Conditions
Min.
Typ.
Max. 12 0.2
Units V A Hz
@ 0.5/30m (VCE / IC)
30 400M
120
AIRCRAFT
AVIONICS
NEW SURPLUS
MILITARY
....
NOTE:
ALL ELECTRONICS ARE UNTESTED
SOLD AS IS
