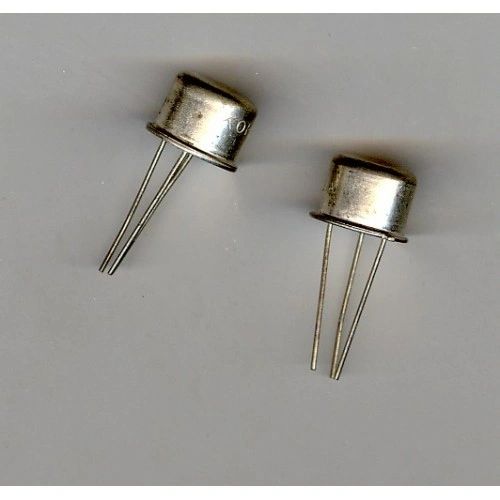

TRANSISTOR MOTOROLA 2N2219A ELECTRONICS AVIONICS

$9.00
Free Shipping!

TRANSISTOR

MOTOROLA

2N2219A

NPN small signal general purpose amplifier

Part: 2N2219

Category:

Description: NPN Transistor, Package : TO-39

Company: Microsemi Corporation


Datasheet text preview:
TECHNICAL DATA
NPN SWITCHING SILICON TRANSISTOR
Qualified per MIL-PRF-19500/251 Devices 2N2218 2N2218A 2N2218AL 2N2219 2N2219A 2N2219AL Qualified Level JAN JANTX JANTXV JANS

MAXIMUM RATINGS Ratings
Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation @ TA = +250C(1) @ TC = +250C(2) Operating & Storage Junction Temp. Range

Symbol
VCEO VCBO VEBO IC PT Top, Tstg

2N2218 2N2219
30 60 5.0

2N2218A; L 2N2219A; L
50 75 6.0

Unit
Vdc Vdc Vdc mAdc W W 0 C Unit C/W

800 0.8 3.0 -55 to +200 Max. 59

TO- 39* (TO-205AD) 2N2218, 2N2218A 2N2219, 2N2219A

THERMAL CHARACTERISTICS
Characteristics Symbol Thermal Resistance, Junction-to-Case RJC 1) Derate linearly 4.6 mW/0C above TA > +250C 2) Derate linearly 17.0 mW/0C above TC > +250C
0

TO-5*

2N2218AL, 2N2219AL
*See appendix A for package outline

ELECTRICAL CHARACTERISTICS (TA = 250C unless otherwise noted)
Characteristics Symbol Min.

Max.

Unit

OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage IE = 10 mAdc Emitter-Base Cutoff Current VEB = 5.0 Vdc VEB = 6.0 Vdc VEB = 4.0 Vdc Collector-Base Cutoff Current VCE = 30 Vdc VCE = 50 Vdc 2N2218; 2N2219 2N2218A; L; 2N2219A; L 2N2218; 2N2219 2N2218A; L; 2N2219A; L All Types 2N2218; 2N2219 2N2218A; L; 2N2219A; L V(BR)CEO 30 50 10 10 10 10 10 Vdc

IEBO

?Adc Adc

ICES

Adc

6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803

120101 Page 1 of 2

2N2218; A; AL; 2N2219; A; AL JAN SERIES

ELECTRICAL CHARACTERISTICS (con't)
Characteristics Collector-Base Cutoff Current VCB = 50 Vdc 2N2218; 2N2219 VCB = 60 Vdc 2N2218A; L; 2N2219A; L VCB = 60 Vdc 2N2218; 2N2219 VCB = 75 Vdc 2N2218A; L, 2N2219A; L Symbol Min. Max. 10 10 10 10 Unit Adc ?Adc

ICBO

ON CHARACTERISTICS (3)
Forward-Current Transfer Ratio IC = 0.1 mAdc, VCE = 10Vdc 2N2218 2N2219 2N2218A; 2N2218AL 2N2219A; 2N2219AL 2N2218 2N2219 2N2218A; 2N2218AL 2N2219A; 2N2219AL 2N2218 2N2219 2N2218A; 2N2218AL 2N2219A; 2N2219AL 2N2218; A; 2N2218AL 2N2219; A; 2N2219AL 2N2218; A; 2N2218AL 2N2219; A; 2N2219AL 2N2218; 2N2219 2N2218A; L; 2N2219A; L 2N2218; 2N2219 2N2218; L; 2N2219A; L 2N2218; 2N2219 2N2218A; L, 2N2219A, L 2N2218; 2N2219 2N2218A; L; 2N2219A; L 20 35 30 50 25 50 35 75 35 75 40 100 40 100 20 30

IC = 1.0 mAdc, VCE = 10 Vdc

hFE

150 325 150 325

IC = 10 mAdc, VCE = 10 Vdc

IC = 150 mAdc, VCE = 10 Vdc IC = 500 mAdc, VCE =10 Vdc Collector-Emitter Saturation Voltage IC = 150 mAdc, IB = 15 mAdc IC = 500 mAdc, IB = 50 mAdc Base-Emitter Saturation Voltage IC = 150 mAdc, IB = 15 mAdc IC = 500 mAdc, IB = 50 mAdc

120 300

VCE(sat)

0.4 0.3 1.6 1.0 0.6 0.6 1.3 1.2 2.6 2.0

Vdc

VBE(sat)

Vdc

DYNAMIC CHARACTERISTICS
Magnitude of Small-Signal Forward Current Transfer Ratio IC = 20 mAdc, VCE = 20 Vdc, f = 100 MHz Small-Signal Forward Current Transfer Ratio IC = 1.0 mAdc, VCE = 10 Vdc, f = 1.0 kHz 2N2218 2N2219 2N2218A, L 2N2219A, L Output Capacitance VCB = 10 Vdc, IE = 0, 100 kHz f 1.0 MHz Input Capacitance VEB = 0.5 Vdc, IC = 0, 100 kHz f 1.0 MHz

hfe

2.5 25 50 35 75

12

hfe

Cobo Cibo

8.0 25

pF pF

SWITCHING CHARACTERISTICS
VCC = 30 Vdc; IC = 150 mAdc; IB1= 15 mAdc Turn-On Time 2N2218, 2N2219 (See Figure 3 of MIL-PRF-19500/251) 2N2218A, L, 2N2219A, L Turn-Off Time 2N2218, 2N2219 (See Figure 4 of MIL-PRF-19500/251) 2N2218A, L, 2N2219A, L (3) Pulse Test: Pulse Width = 300?s, Duty Cycle 2.0%.
t

on

t

off

40 35 250 300

s s

6 Lake Street, Lawrence, MA 01841 1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803

P 120101 age 2 of 2
